In 1987, the Ad Lib Music Synthesizer Card put a Yamaha YM3812 at the center of an eight-bit ISA board. IBM-compatible PCs had gained graphics, storage, and faster processors, but many still made game sound through the built-in speaker; this small Japanese sound chip gave software nine programmable musical voices.
The route began at Yamaha (ヤマハ) in Toyooka. The instrument maker completed its semiconductor factory there in 1971, developed its own Electone LSI by 1977, and began selling sound, image, and signal-processing chips outside the company in 1983.
Ad Lib, a Canadian company, built its 1987 card around the YM3812, also called OPL2. A CPU wrote instrument parameters and notes into its registers, while a separate YM3014 converted the chip’s digital output into an analog signal.
Each of the nine channels used two FM operators: one waveform could modulate another, or the pair could be added. Software controlled pitch, attack, decay, sustain, release, vibrato, and tremolo; a second mode exchanged three melodic channels for bass drum, snare, hi-hat, cymbal, and tom sounds.
The good was an inexpensive, repeatable target. Once game developers learned the card’s registers, the same score could run on many compatible PCs, and later sound-card makers preserved Ad Lib support because the software library had become valuable.
The bad was audible in the specification. Two-operator synthesis was economical but less flexible than Yamaha’s richer four-operator systems, the original card was monaural, and it could not record or play sampled PCM audio for speech and effects.
Creative’s Sound Blaster kept compatible FM music while adding digital audio, turning Ad Lib’s standard into a feature of a stronger rival. Ad Lib failed as a company in 1992, but the register map and metallic OPL2 timbre remained embedded in DOS games, emulators, and later compatible hardware.

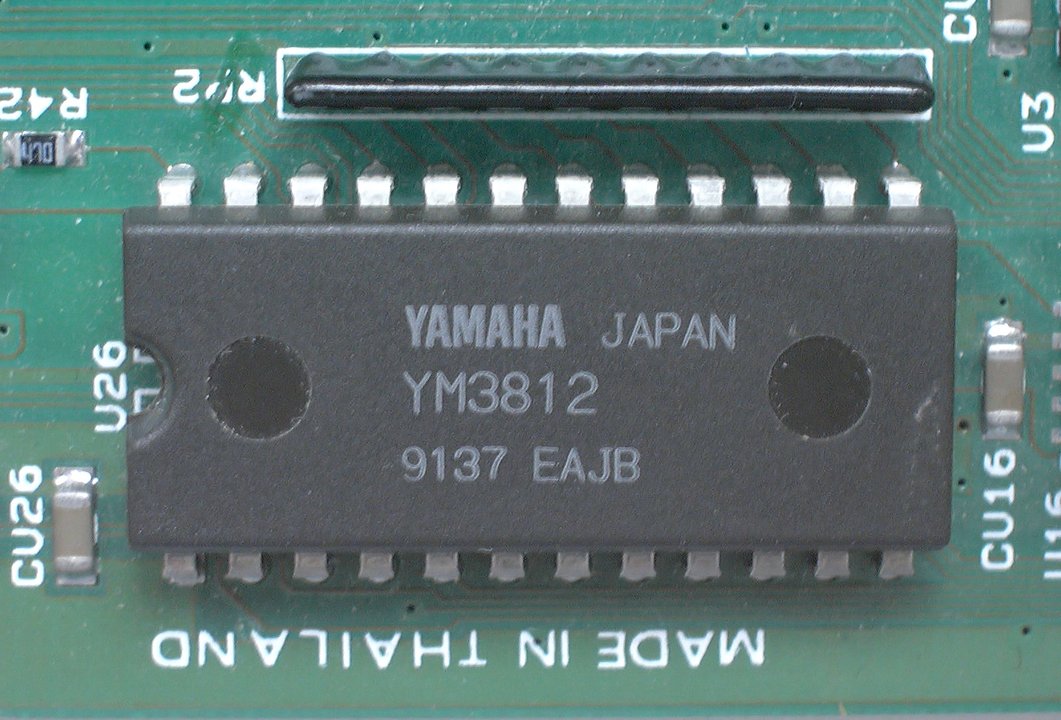

The pin marks Yamaha’s verified Toyooka factory, the semiconductor base that made the company’s sound-LSI business possible. It is an institutional anchor rather than a claim that the YM3812 was designed at this exact room; the cover shows a board-mounted chip clearly marked “YAMAHA JAPAN YM3812.”
Sources: Yamaha Corporation, “The Full-Scale Start of the Semiconductor and Electronics Business” and Toyooka Factory location page; Yamaha YM3812 OPLII data sheet; Centre for Computing History, “AdLib Music Synthesizer Card”; DOS Days, “Ad Lib.”
Photo: Stonda~commonswiki, CC BY 2.5, via Wikimedia Commons. https://commons.wikimedia.org/wiki/File:Yamaha_YM3812.jpg
